VMware: DCV-CTS Pod - Quick Reference Page


This quick reference page provides a summary of the specifications of this topology.

For the implementation of the VMware: DCV-CTS Pod it is necessary to request virtual machine templates from CSSIA. Using these templates will simplify your setup, since the virtual machines will be pre-configured.

Topology Supports... Documentation
VMware: DCV-CTS Pod

VMware: DCV-CTS Pod

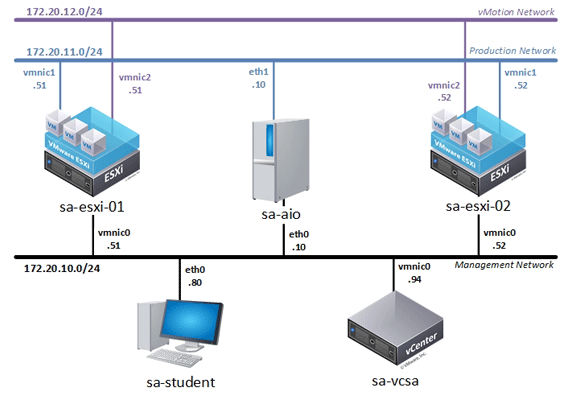

Lab Topology

VMware DCV-CTS Pod

Virtual Machines

A description of the virtual machines in the pod is provided in the table below.

Virtual Machine Role
sa-aio A virtual server that runs multiple services for the environment
sa-esxi-01 Virtualized ESXi server
sa-esxi-02 Virtualized ESXi server
sa-student A virtual workstation that runs the VMware vSphere client
sa-vcsa A virtual server that runs an instance of VMware vCenter server


Virtual Machine Templates

The virtual machines are made available as Open Virtualization Format (OVF) or Open Virtualization Archive (OVA) files. These files are available for download from EPNC (Education Pathway National Center).

To request access to the preconfigured virtual machine templates from EPNC:

  1. Go to the CSSIA Resources page: https://www.caeepnc.org/cssiaresources/
  2. Select CSSIA VM Image Sharing Agreement.
  3. Complete and submit your access request by following the instructions on the request form.
  4. EPNC will provide, via email, password-protected download links. Access to the download links is provided only to customers who are current with their NETLAB+ support contract and are participants in the appropriate partner programs (i.e., Cisco Networking Academy, VMware IT Academy, Red Hat Academy, and/or Palo Alto Networks Cybersecurity Academy).
  5. Once all virtual machines have been downloaded, they can be deployed following the steps in the appropriate pod installation guide. Each virtual machine is deployed individually.
