This quick reference page provides a summary of the specifications of this topology. For a complete reference including installation details, please refer to the Red Hat System Administration Pod Planning and Installation Guide

You may request virtual machine templates for the Red Hat System Administration pod from CSSIA.

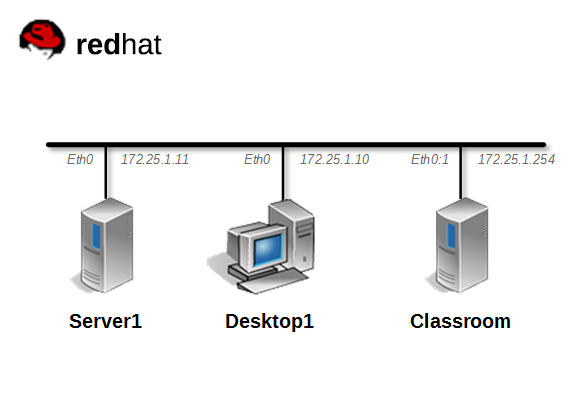

Lab Topology

RHPod

Virtual Machines

The virtual machines in the pod are listed in the table below.

Virtual Machine
Desktop1
Server1
Classroom


Virtual Machine Templates

The Center for Systems Security and Information Assurance (CSSIA) provides virtual machine templates to install on the pod.

To request access to the preconfigured virtual machine templates from CSSIA:

  1. Go to the CSSIA Resources page: http://www.cssia.org/cssia-resources.cfm.
  2. Select VM Image Sharing Agreement ? Image Sharing Agreement.
  3. Select VM Image Sharing Agreement to open the request form.
  4. Complete and submit your access request by following the instructions on the request form.
  5. CSSIA will email a link, along with a username and password to access the download server. Access to the download server is provided only to customers who are current with their NETLAB+ support contract and are participants in the appropriate partner programs (i.e. Red Hat Academy, VMware IT Academy, and/or EMC Academic Alliance).
  6. Once access to the download server has been established, the virtual machines can be deployed directly to the vCenter Server by clicking on File > Deploy OVF Template in the vClient window and copying the link into the location field.
  7. The deployment will start after the username and password are entered.
  8. Each virtual machine is deployed individually.
  9. Please refer to the appropriate pod installation guide for the virtual machines you are downloading.
