This quick reference page provides a summary of the specifications of these topologies. For a complete reference including installation details, please refer to the Palo Alto Firewall Essentials Pod Planning and Installation Guide .

Want to watch the installation performed? Please see the video version of the installation guide.

The Palo Alto Networks Academy Firewall Essentials lab set is designed to have Internet access. Due to this requirement, 2 topologies are needed. The Firewall Essentials Gateway pod (GW) is designed to provide Internet access to underlying Firewall Essentials pods (FE) per host.

To install and use these pods on your NETLAB+ system, you are required to indicate your acceptance of the NETLAB+ Pod Internet Access and Use Agreement. Your system will not be enabled to support Palo Alto Networks Firewall Essentials pods until the agreement is accepted.

FEandGW

You may request virtual machine templates for the Palo Alto Firewall Essentials FE Pod and the Fire Essentials GW Pod from CSSIA.

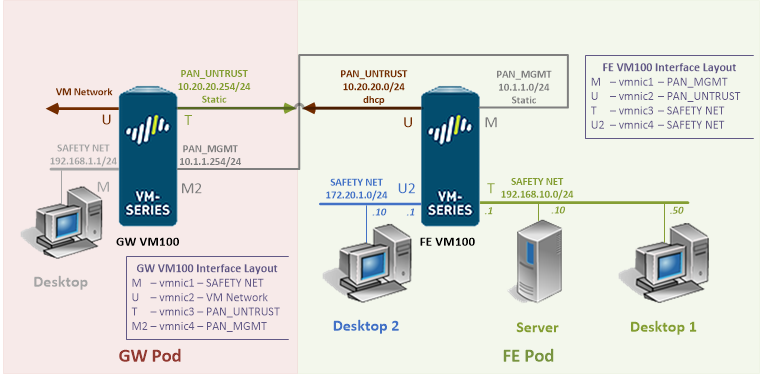

Lab Topologies

Lab Topology - GW Pod

RHPod

Virtual Machines - GW Pod

The virtual machines in the pod are listed in the table below.

Virtual Machine
GW Firewall
Desktop

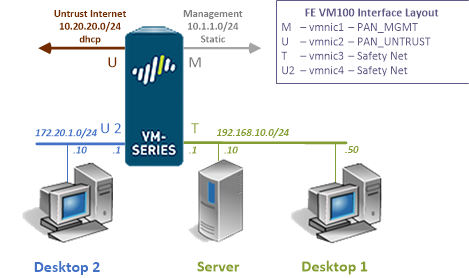

Lab Topology - FE Pod

FEPod

Virtual Machines - FE Pod

The virtual machines in the pod are listed in the table below.

Virtual Machine
FE Firewall
Desktop1
Desktop2
Server


Installation Video

For a step-by-step look at the installation process, see the video version of the installation guide.



Virtual Machine Templates

The Center for Systems Security and Information Assurance (CSSIA) provides virtual machine templates to install on the pod.

To request access to the preconfigured virtual machine templates from CSSIA:

  1. Go to the CSSIA Resources page: http://www.cssia.org/cssia-resources.cfm.
  2. Select VM Image Sharing Agreement ? Image Sharing Agreement.
  3. Select VM Image Sharing Agreement to open the request form.
  4. Complete and submit your access request by following the instructions on the request form.
  5. CSSIA will email a link, along with a username and password to access the download server. Access to the download server is provided only to customers who are current with their NETLAB+ support contract and are participants in the appropriate partner programs (i.e. Palo Alto Academy, VMware IT Academy, and/or EMC Academic Alliance).
  6. Once access to the download server has been established, the virtual machines can be deployed directly to the vCenter Server by clicking on File > Deploy OVF Template in the vClient window and copying the link into the location field.
  7. The deployment will start after the username and password are entered.
  8. Each virtual machine is deployed individually.
  9. Please refer to the appropriate pod installation guide for the virtual machines you are downloading.
