Click on the links below to view diagrams of the recommended memory configurations.

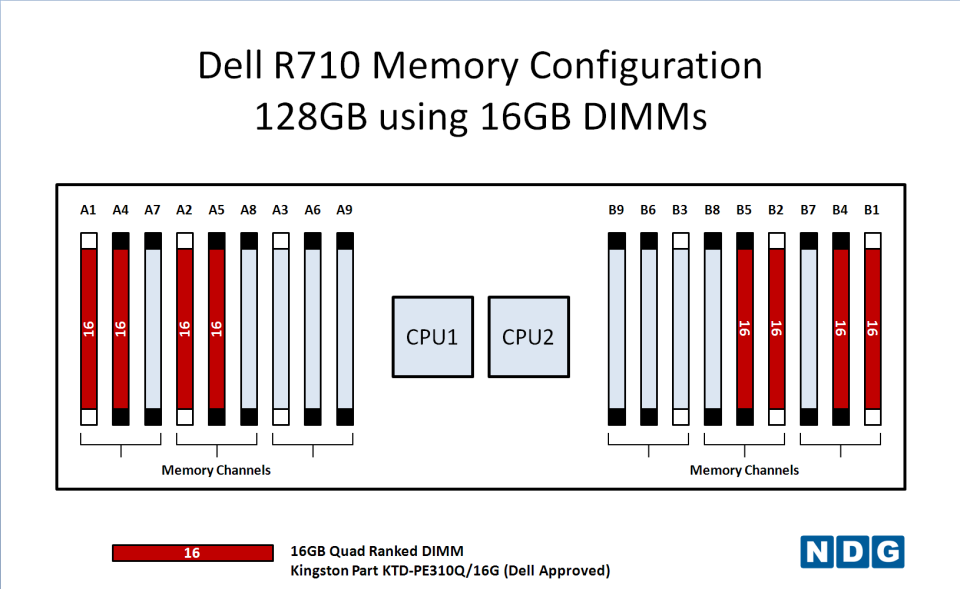

Dell R710 Memory Configuration 128GB using 16GB DIMMs
Dell R710 Memory Configuration 128GB using 8GB DIMMs
Dell R710 Memory Configuration 96GB using 16GB DIMMs
Dell R710 Memory Configuration 96GB using 8GB DIMMs

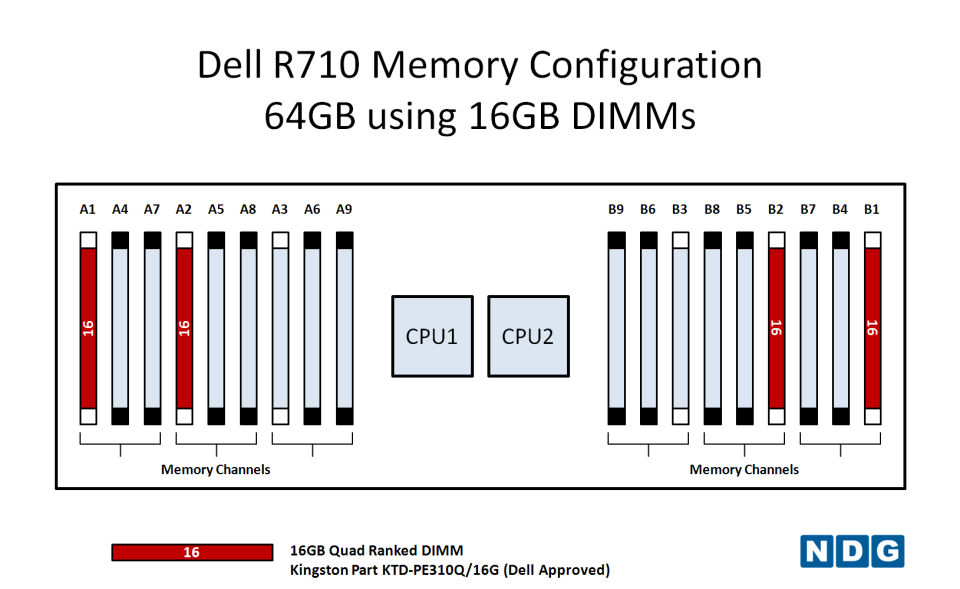

Dell R710 Memory Configuration 64GB using 16GB DIMMs
Dell R710 Memory Configuration 64GB using 8GB DIMMs

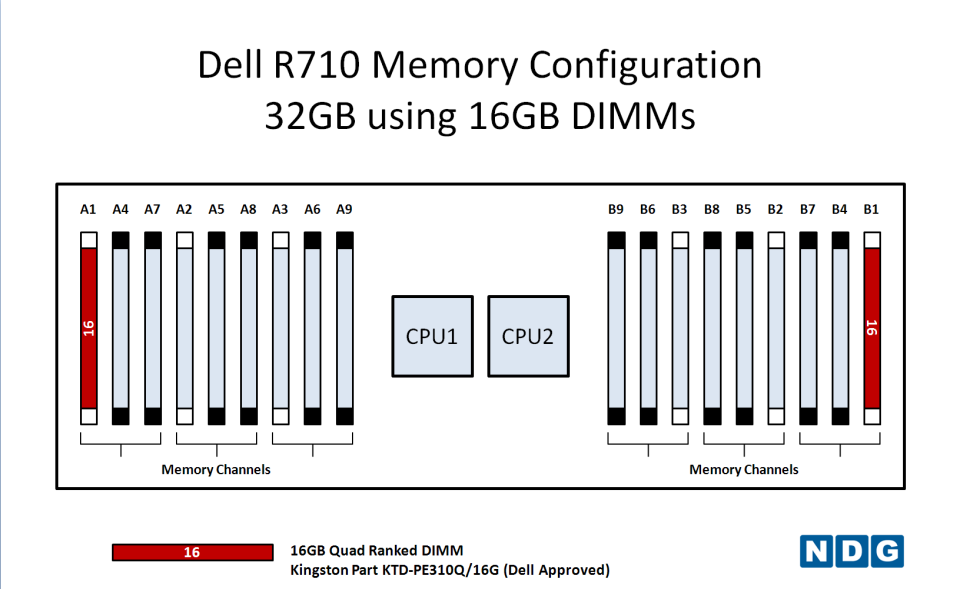

Dell R710 Memory Configuration 32GB using 16GB DIMMs

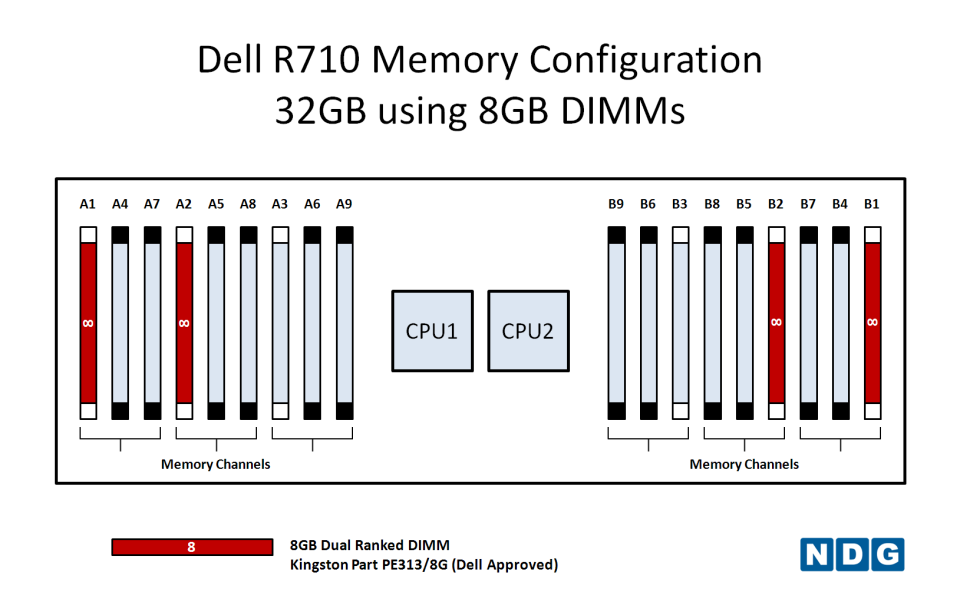

Dell R710 Memory Configuration 32GB using 8GB DIMMs
